DPTJ series
Integrating functionalities such as airing, dust removal, drying, aligning, and jogging

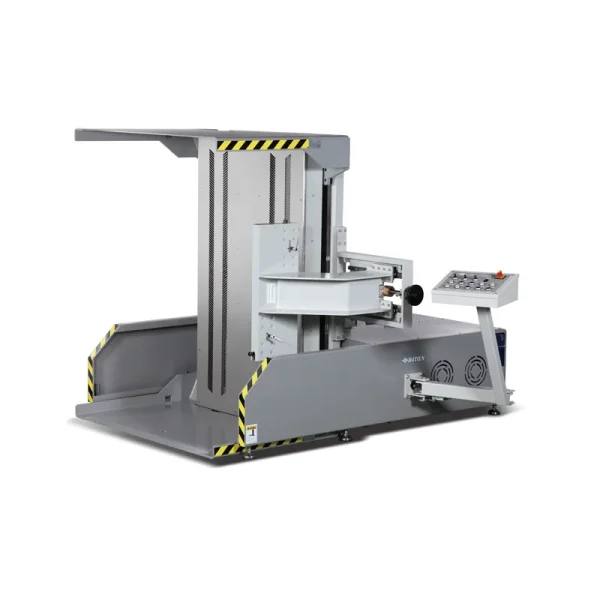

Product image for illustration purposes only. Actual product may vary.
Description
Concept
Paper Pile Turner simplifies the paper turning process. Its robust design enables it to efficiently manage large quantities of paper, which can be challenging for manual handling.
Integrating functionalities such as airing, dust removal, drying, aligning, and jogging, this pile turner effectively reduces the time required for processing, offering a comprehensive all-in-one solution for enhanced operational efficiency.
Features
- Air blow to separate sheet ensuring precise and efficient feeding
- Airing between pile help to dry ink and varnish quickly
- Remove dust before press to optimize printing quality
- Remove rejected sheets (depending on thickness) by aligning pile
- Central aligning on larger size pallet
- All kinds of transport and machine pallet can be used.
Specification
| Model | DPTJ-125A/140 | DPTJ-125A/180 | |
| Machine Width | cm | 164 | 164 |
| Machine Length | cm | 215 | 237.5 |
| Platform Width | cm | 137 | 135 |
| Platform Depth | cm | 80 | 80 |
| Maximum Pile Height | cm | 140 | 180 |
| Minimum Pile Height | cm | 63 | 85 |
| Turning Diameter | cm | 202 | 232 |
| Machine width with Panel | cm | 225 | 225 |
| Max. Height | cm | 180 | 180 |
| Sheets size (max) | cm/inch | 80 x 135 ( 31 ½ x 53 ) | |
| Power | kW (hp) | 9.75 ( 13 ) | 10.5 ( 14 ) |
| Weight (net) | Kg | 1800 | 2300 |
| Carrying capacity (max) | Kg | 1000 | 1500 |
