Paper jogger machines are essential tools for businesses that have high-volume folding, inserting and bookbinding. It reduces jogging time, human interaction and minimize offset by using motorized table mechanism. With the air remover roller technology, static between sheet is also minimized. This standalone unit is made purposely for easier paper jogging while movable within floor area for maximizing output capacity.

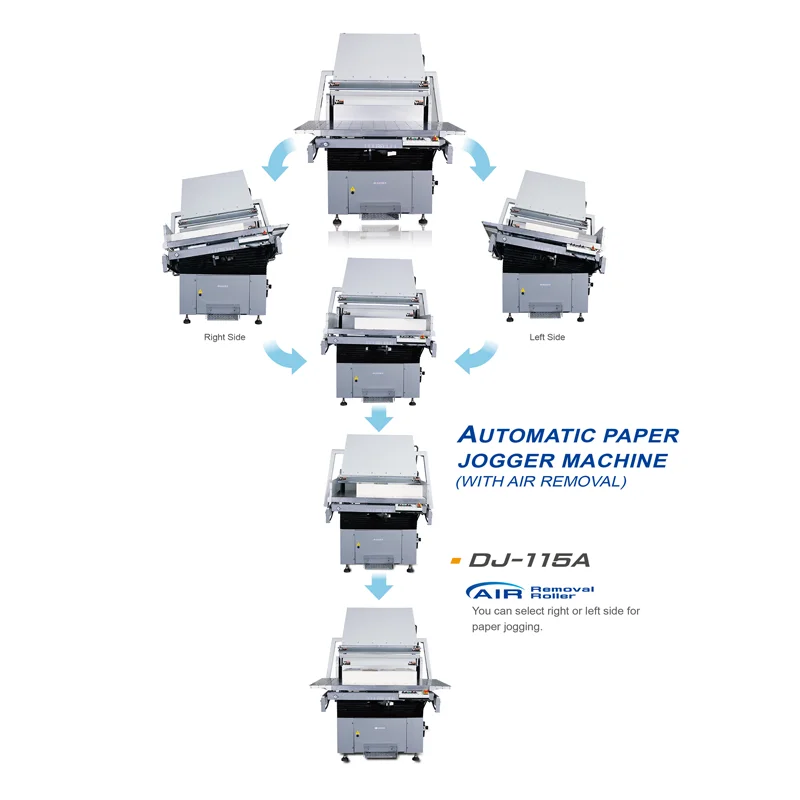

Jogger Machine Concept
Paper jogger machines are essential tools for businesses that have high-volume folding, inserting and bookbinding

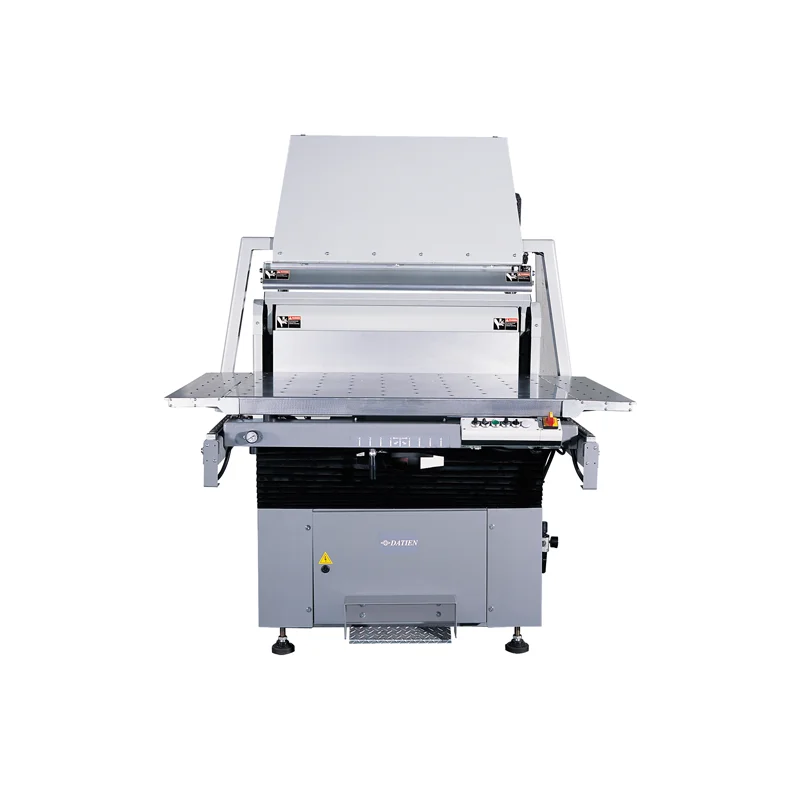

Product image for illustration purposes only. Actual product may vary.
Description
Concept
Specification
| Size | 90cm x 115cm | 35 ⁷⁄₁₆ inch x 45 ¼ inch |
| Maximum Pile Height | 16.5cm | 6 ½ inch |
| Power Consumption | 1.72kW/AC | 3 Phase 220V/380V/415V |
| Air capacity | 9 l/min | |
| Pressure range bar | 6-8 bar | |
| Required Space (Gauges tilted down, d x w) | 128cm x 155cm | 50 ⅜ inch x 61 inch |
| Table height (Adjustable, from -to) | 86cm - 95cm | 33 ⅞ inch - 35 ⅜ inch |
| Weight, net | 550kg | 1213 Ibs |
